CNC Shop - X111-008 3/16" Cut Diameter ACM Profiling Upcut Router Bit CNC Shop - X111-008 3/16" Cut Diameter ACM Profiling Upcut Router Bit

$42.00
SKU: X111-008
Bit
  • 1
  • 1/4 inch
  • CNC Shop
  • Upcut
  • 2 inch
  • 3/16 inch
  • 5/8 inch
  • 1-844-262-7467
Description Description

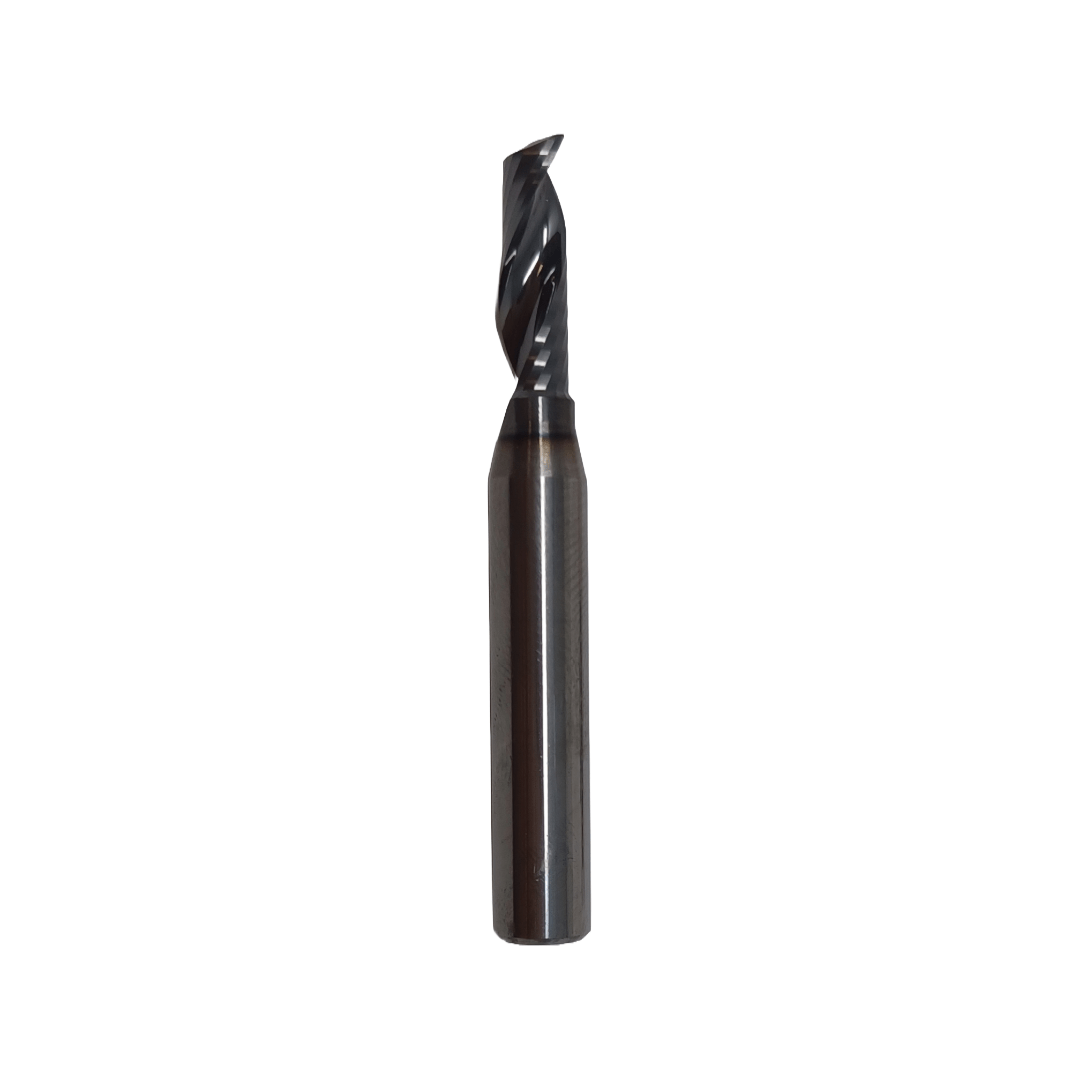

CNC Shop - X111-008 3/16" Cut Diameter ACM Profiling Upcut Router Bit



CNC Shop tools are made of solid carbide which ensures that they stay sharp much longer than high speed steel tooling. The single upcut flute will clear chips very efficiently for high feed speeds. The tools are designed for high clearance on the backside of the flute to minimize heat buildup and therefore do not require lubrication. They are especially effecting for machining ACM where they produce a smooth and consistent finish. This CNC Shop tool is equipped with durable solid carbide, allowing it to maintain its sharp edge for extended periods of time. The upcut flute guarantees optimal chip clearance, allowing for high-speed feed rates. Its high flute clearance prevents heat accumulation, eliminating the need for external lubrication. The result? A tool that consistently delivers a smooth finish, especially when used for ACM fabrication.



Specifications

  • Cut Diameter: 3/16"
  • Shank: 1/4"
  • Cut Length: 5/8"
  • Overall Length: 2"
  • Flute Type: Upcut





Similar to

  • Onsrud #63-618
  • CNC Shop # C111-008

    CNC Shop - X111-008 3/16" Cut Diameter ACM Profiling Upcut Router Bit



    CNC Shop tools are made of solid carbide which ensures that they stay sharp much longer than high speed steel tooling. The single upcut flute will clear chips very efficiently for high feed speeds. The tools are designed for high clearance on the backside of the flute to minimize heat buildup and therefore do not require lubrication. They are especially effecting for machining ACM where they produce a smooth and consistent finish. This CNC Shop tool is equipped with durable solid carbide, allowing it to maintain its sharp edge for extended periods of time. The upcut flute guarantees optimal chip clearance, allowing for high-speed feed rates. Its high flute clearance prevents heat accumulation, eliminating the need for external lubrication. The result? A tool that consistently delivers a smooth finish, especially when used for ACM fabrication.



    Specifications

    • Cut Diameter: 3/16"
    • Shank: 1/4"
    • Cut Length: 5/8"
    • Overall Length: 2"
    • Flute Type: Upcut





    Similar to

    • Onsrud #63-618
    • CNC Shop # C111-008
