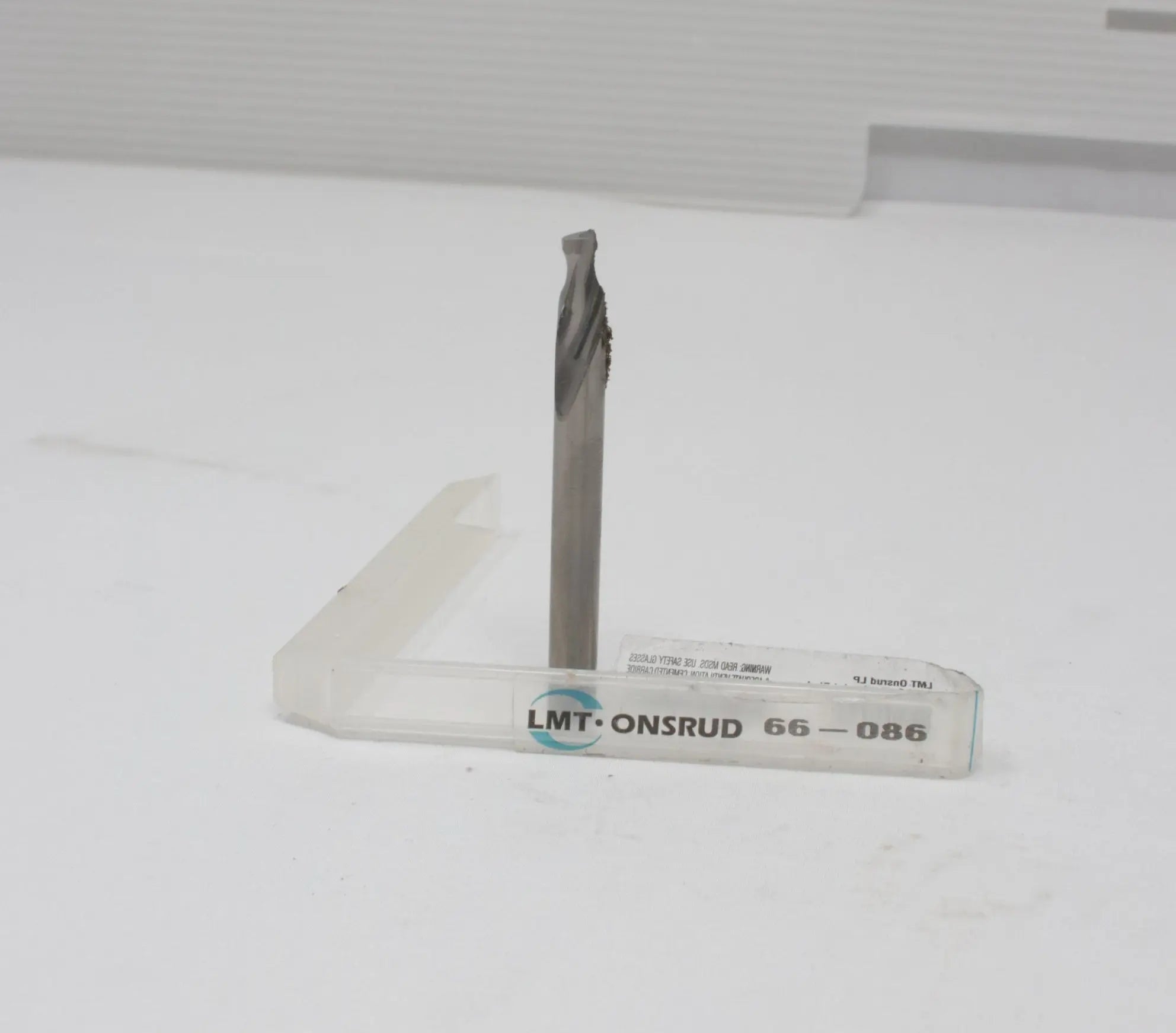

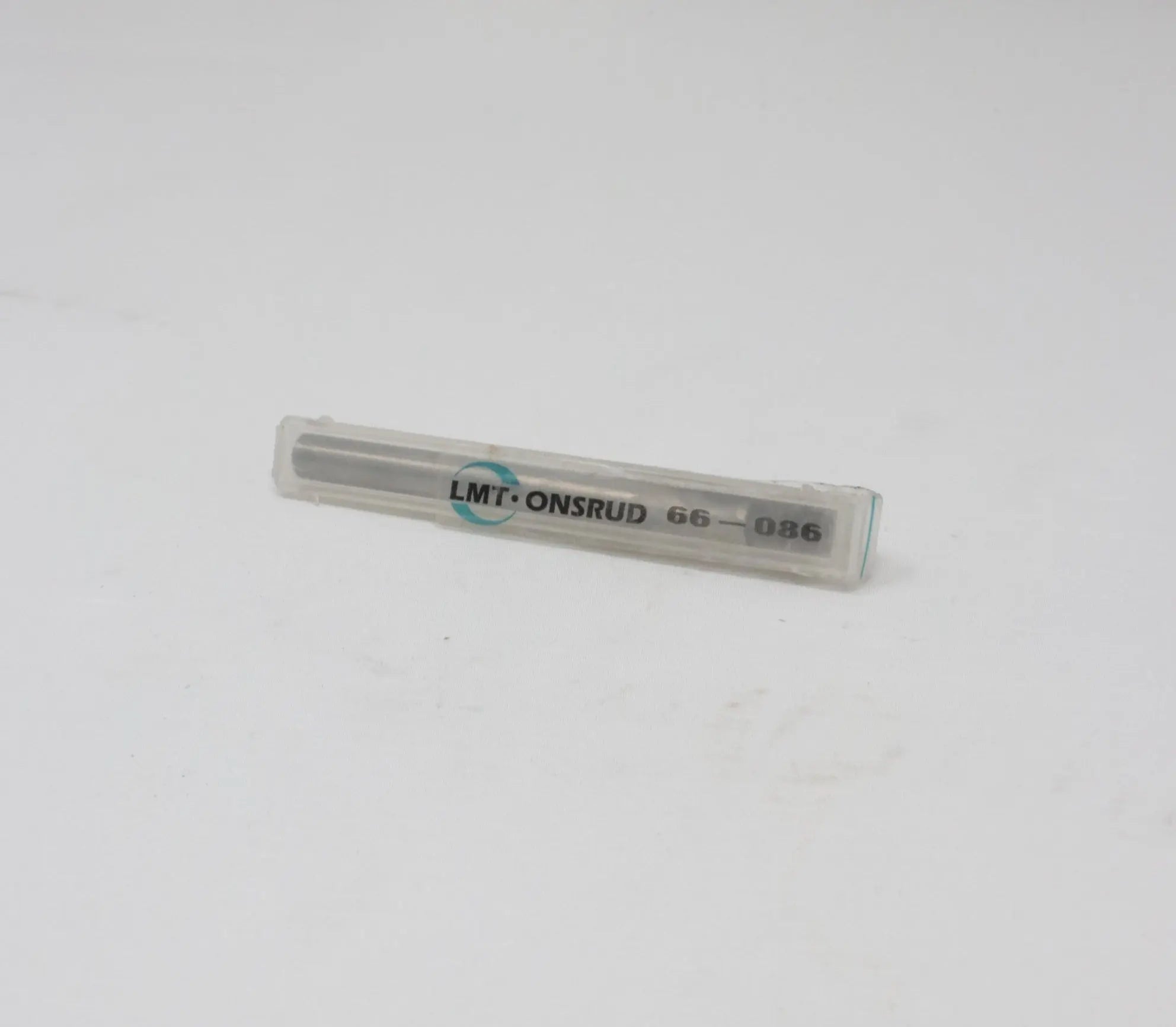

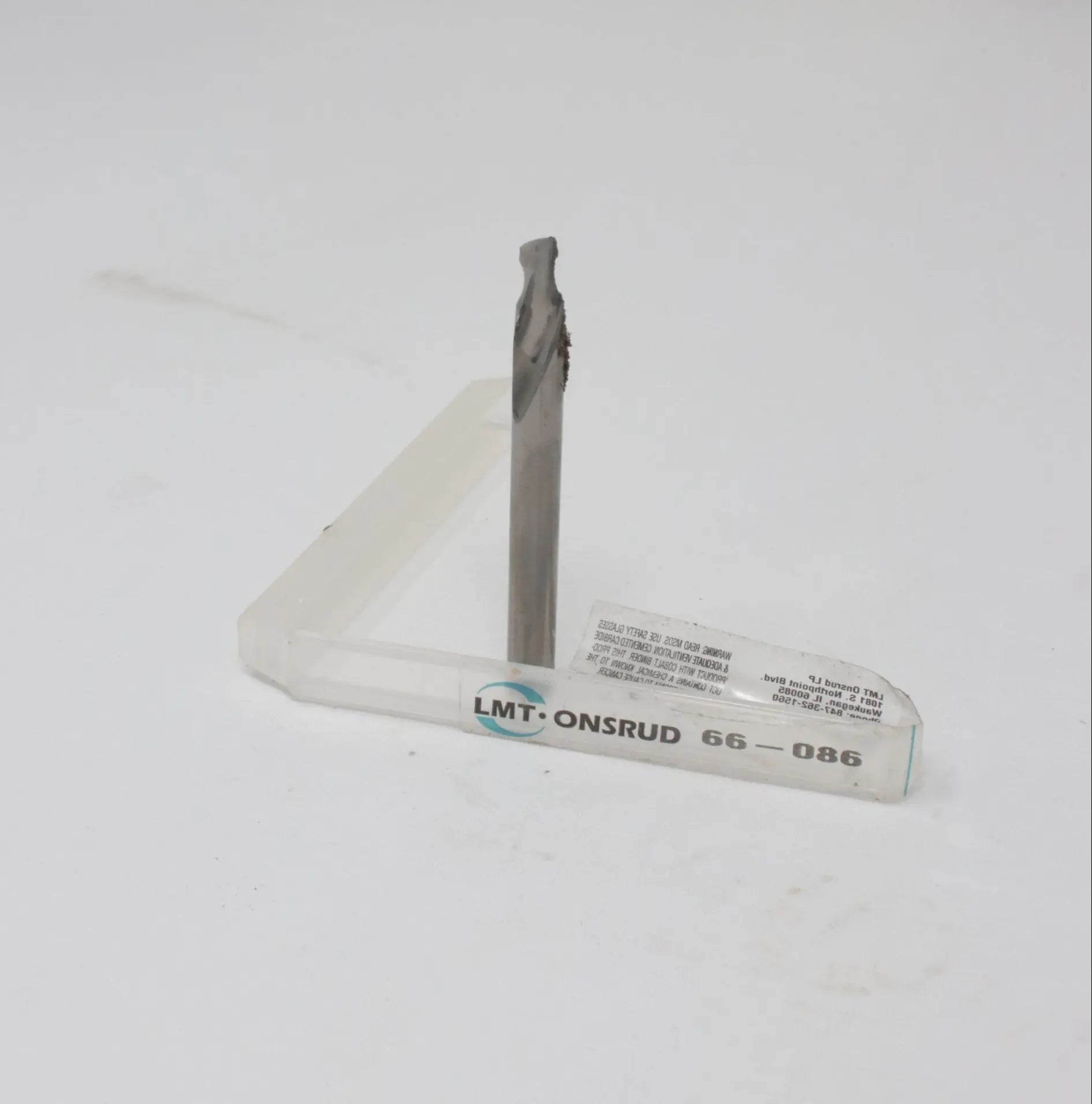

LMT Onsrud - 66-086 Solid Carbide Router, 1 Flute, O Flute, Edge Rounding LMT Onsrud - 66-086 Solid Carbide Router, 1 Flute, O Flute, Edge Rounding

$101.79 $50.90
SKU: 66-086
Bit
  • 2
  • 1/4 inch
  • LMT Onsrud
  • Upcut
  • 1/4 inch
  • 3/4 inch
Description Description

Designed for rounding the edge of sheets or parts. Designed for optimal performance on soft plastics, hard plastics, and solid surfaces.

Cut Diameter: 1/4"

Cut Length: 3/4"

Small Flute Length: 0.1800"

Opening: 0.2187"

Tip to Radius: 0.0625"

Shank: 1/4"

Overall Length: 2 1/2"

No. Flutes: 1

Radius: 0.188"

Material Thickness: 3/16"
